Magnet:

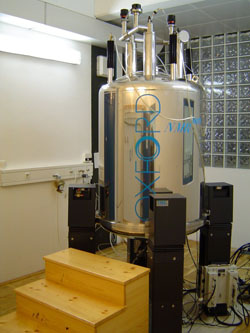

14.1 Tesla 51 mm bore Oxford Superconducting Magnet
Console:
DirectDrive architecture
Four Channels (Two Full band, Two Extended Band)
RF Attenuator Module
28-channel Shims
100 W for 1H/19F and 300 W Broadband Linear Amplifiers
Performa II PFGt Module
Probes |
temperature range |
| 5 mm 1H{13C/15N} PFG Triple Probe |
from -20 oC to +80 oC |
| 5 mm 1H{13C/15N/31P} PFG Penta Probe |
from -100 oC to +120 oC |
| 5 mm 13C-31P Broadband Probe |
from -150 oC to +200 oC |
| 5 mm low-gamma Broadband Probe |
from -80 oC to +130 oC |
| 5 mm 1H{15N-31P} PFG Indirect Probe |
from -50 oC to +50 oC |
| 4 mm 1H Nano Probe |
from -150 oC to +200 oC |
| 3.2 mm Double Resonance HX MAS Probe (Varian) |
from -40 oC to +100 oC |
| 1.6 mm Triple Resonance HXY FastMAS Probe (Varian) |
from 0 oC to +70 oC |
| 5 mm Triple Resonance HXY SupersonicMAS Probe(Doty) |
from -40 oC to +70 oC |
| 4 mm Double Resonance HX HotMAS (Custom made) |
from 30 oC to +320 oC |
Host computer:
AMD FX(tm)-8150 Eight-Core processor, 8 Gb RAM, 650 Gb hard disk,
22" LCD monitor, Internal DVD-ROM
Software:
Red Hat 6.1
Software:
VNMRJ rev. 3.2A
